How our Interior Perimeter Waterproofing System Works in Stanton, KY

Thursday, October 16th, 2025 by Jack Purdon

Challenge

This project in Stanton, KY was a perfect example of how our interior waterproofing system can completely transform a wet, unusable basement into a dry and dependable space. The homeowner was running a small business out of their basement, but ongoing water leaks and constant moisture made it nearly impossible to operate or safely store materials. The block foundation walls were allowing water to seep through, and the musty environment was becoming a real obstacle for their daily work. The homeowner called us to design a long-term interior waterproofing solution that would let them confidently use their basement again.

Solution

We installed a full perimeter WaterGuard drainage system, a TripleSafe sump pump for reliable water removal, and trench drains around the water heater for added protection. Each photo from this project captures a different step of the process, showing exactly how our interior waterproofing system works from start to finish.

The process began with trenching around the basement perimeter by jackhammering the concrete floor. To minimize dust and disruption, we used a negative air system throughout the project. We also had the homeowner move all of their work shelves to the middle of the basement so we could safely cover them in a plastic tarp, which we made sure to seal airtight. Once the trench was opened, small weep holes were drilled into the bottom row of block to relieve any built-up wall pressure and direct the water into the WaterGuard channels.

Our WaterGuard drains were then fitted neatly on top of the footing—never beside it—so they stay out of the mud zone and remain clear over time. We backfilled the trench with clean gravel for proper drainage, then applied a layer of moisture-transfer prevention tape before sealing everything with fresh concrete. The top flange of the WaterGuard is designed to remain visible along the base of the wall, allowing any wall moisture to drain directly into the system without leaving stains or puddles on the floor.

Finally, all collected water flows through the WaterGuard system and into the TripleSafe sump pump, which provides three layers of protection to keep the basement dry even during heavy storms or power outages.

This Stanton, KY basement is now clean, dry, and ready to use again—giving the homeowner the confidence to continue running their business without worrying about leaks, humidity, or damage to stored materials. Each step of the installation captured in this case study highlights how our interior perimeter waterproofing system works together as a complete, permanent solution.

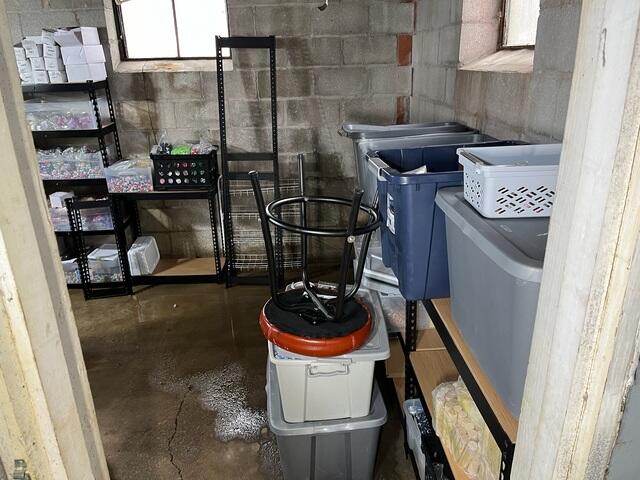

This was the environment the homeowner grew tired of. Not only could the water potentially damage their stored items, it could also cause headaches from the smell.

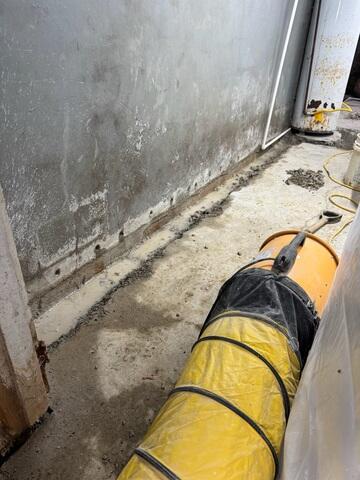

This photo shows the trenches opened up, the weeping holes drilled, and our negative air system sucking up dust.

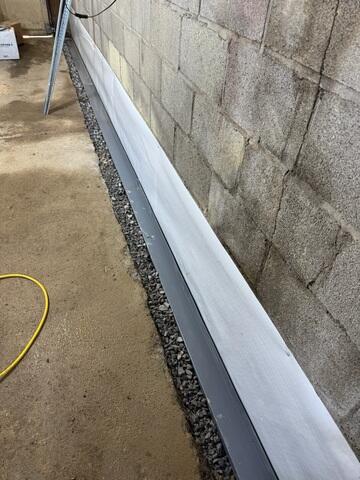

This was what the drainage system looked like after we fitted the trenches with the WaterGuard. We also pitched the drains slightly towards the sump pump with a gravel backfill.

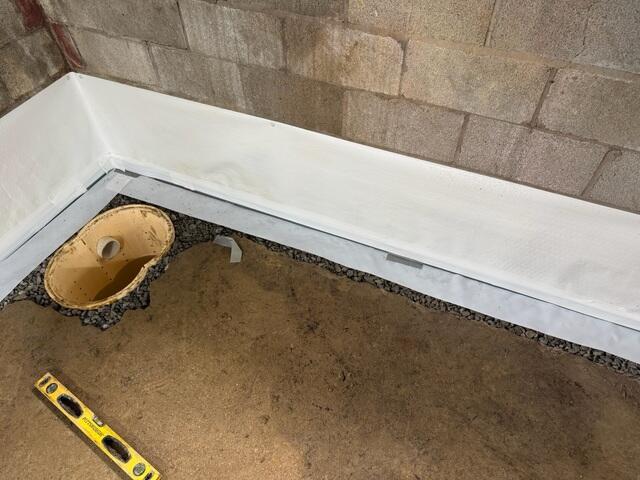

This photo shows where we dug a hole to make room for our sump pit. We also covered the top of our drains with our moisture proof tape to prevent moisture transference.

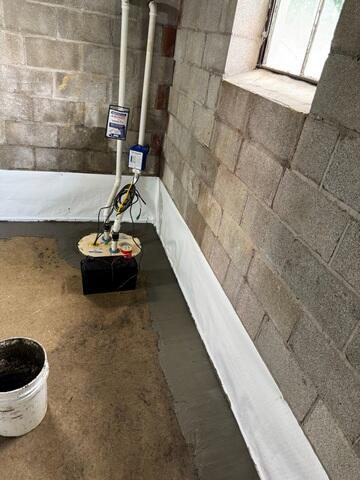

This was what the system looked like upon completion. We covered the drains with a fresh concrete layer. Although concealed, the WaterGuard has a tiny wall flange sticking up out of the floor and against the walls to be able to capture wall leaks. The TripleSafe sump pump was fitted with three different pumps inside the liner, including one pump that is backed by a battery backup system in case of power failure.

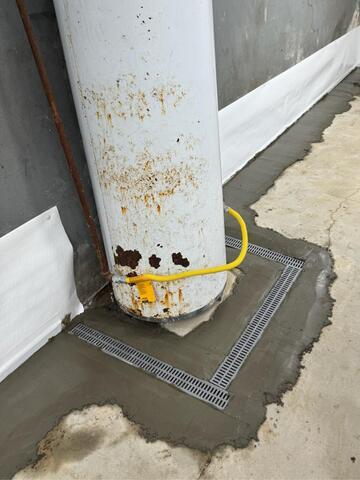

This was where we encased the base of the water heater with a trench drain system. If this water heater ever leaks, the water will be captured by the drainage system.
